Cold Metal Fusion (CMF): Revolutionizing Additive Manufacturing

Discover how Cold Metal Fusion creates high-quality metal parts efficiently. Learn about the process, advantages, and its impact on additive manufacturing.


Introduction

Cold Metal Fusion (CMF) is an innovative additive manufacturing technology developed by Headmade Materials GmbH. This cutting-edge process merges the principles of Selective Laser Sintering (SLS) with the robustness of Powder Metallurgy (PM) to create high-quality metal parts efficiently and cost-effectively. In this blog, we'll delve into the technical aspects of CMF, its comparative advantages, materials, and environmental impact.

The Technology Behind Cold Metal Fusion

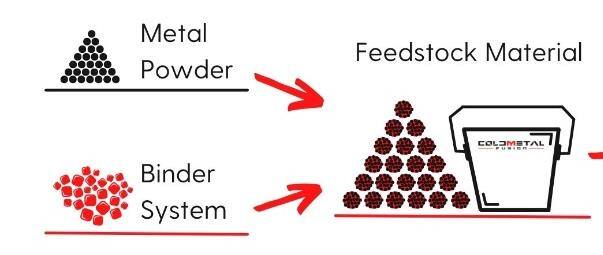

Cold Metal Fusion represents a significant advancement in additive manufacturing by combining established SLS technology with a novel feedstock material. This feedstock consists of metal particles coated with a polymer binder, enabling the use of existing SLS machines that are typically used for polymers. Integrating this new material allows manufacturers to produce metal parts without needing expensive new machinery.

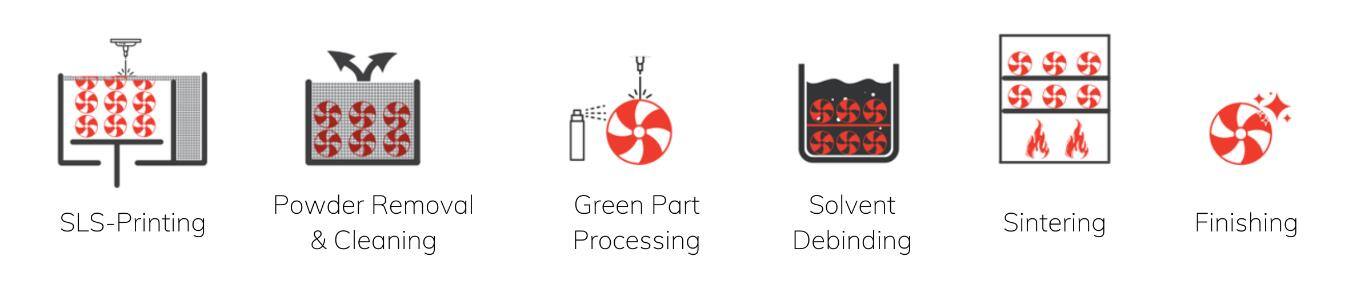

The CMF process begins with preparing a CAD file. The design is scaled to account for shrinkage during sintering, typically around 13-14% for most materials. This file is then used in the SLS printer, where the part is built layer by layer at temperatures below 80°C. The polymer binder melts, bonding the metal particles without exposing them to air, thus preventing oxidation.

Once printing is complete, the green part—so called because it is still embedded in the polymer binder—is depowdered and cleaned. The high strength of the green part allows for post-processing steps such as milling or drilling before it undergoes solvent debinding. The binder is removed in this stage, resulting in a brown part. The final step is sintering, where the brown part is heated in a furnace, causing the metal particles to fuse into a dense, solid metal part. The final metal part can be finished with polishing, grinding, or heat treatment to achieve the desired surface quality and dimensional accuracy.

2401_WP_Metal 3D Printing with CMF

Comparative Analysis: CMF vs. LB-PBF vs. MBJ

Cold Metal Fusion (CMF) stands out in additive manufacturing due to its unique SLS and PM principles combination. In contrast to Laser Beam Powder Bed Fusion (LB-PBF) and Metal Binder Jetting (MBJ), CMF utilizes a sinter-based, two-step approach that offers significant cost, material variety, and production speed advantages.

Unlike LB-PBF, which involves direct metal melting and requires support structures, CMF produces high-strength green parts with low sintering shrinkage, eliminating the need for such supports. Additionally, CMF's lower operational costs and extensive material compatibility make it an attractive option for high-volume production.

While suitable for complex geometries, MBJ often struggles with lower green part strength and uneven sinter shrinkage. CMF, on the other hand, offers consistent shrinkage and high part strength, making post-processing and automation more feasible. This comparative analysis highlights CMF's superior efficiency and versatility in additive manufacturing.

Feature CMF LB-PBF MBJ
Process Sinter-based, two-step Direct metal melting Sinter-based, two-step
Build Speed High Moderate High
Material Variety Extensive Limited Extensive
Support Structures Not required Required Not required
Green Part Strength High N/A Lower
Sinter Shrinkage 13-14% None 17-26%
Environmental Impact Low due to reusability and efficiency Higher due to energy consumption Moderate
Cost Low CAPEX, high part output High CAPEX, low part output Medium to high CAPEX

Advantages of Cold Metal Fusion

Cold Metal Fusion offers several key advantages, making it a game-changer in additive manufacturing. Its cost efficiency is a significant benefit, with lower initial investment and operational costs making it suitable for high-volume production. CMF supports various metals, including stainless steel, titanium, and tool steels, providing flexibility for various applications.

Another significant advantage of CMF is its production speed. The technology offers high build speeds and part output, optimizing the production process and reducing time to market. Additionally, CMF produces high-strength green parts with consistent shrinkage, ensuring reliable and repeatable results. This consistency is crucial for industries that require precise and high-quality metal parts.

2211_ColdMetalFusion_Design_Guide

Materials Used in CMF

CMF is compatible with a diverse range of metal powders, offering flexibility for different industrial applications. Commonly used materials include stainless steel 316L, titanium Ti6Al4V, Inconel 625, tool steel M2, stainless steel 17-4PH, and titanium aluminide TiAl4822. These materials provide a balance of mechanical properties suitable for a wide range of uses, from aerospace to medical devices.

For instance, stainless steel 316L is widely used in the medical industry for surgical instruments and implants due to its excellent corrosion resistance and biocompatibility. Titanium Ti6Al4V is favored in the aerospace sector for its high strength-to-weight ratio, making it ideal for aircraft components. Inconel 625 is commonly used in high-temperature applications, such as gas turbine blades, due to its outstanding heat and oxidation resistance. Tool steel M2 is preferred for manufacturing cutting tools and dies thanks to its high hardness and wear resistance. These examples demonstrate CMF's versatility and suitability for various industries, including automotive, aerospace, medical, and manufacturing.

Environmental Impact

One of the significant benefits of Cold Metal Fusion is its positive contribution to environmental sustainability. The process achieves high reusability of non-processed powder, minimizing material waste. Additionally, the lower process temperatures and minimal post-processing requirements reduce energy consumption. The solvent debinding process is environmentally friendly, using recyclable solvents that minimize environmental harm.

2401_WP_Metal 3D Printing with CMF1

Future Outlook and Conclusion

The future of Cold Metal Fusion looks promising, given ongoing advancements in materials and process automation. As more industries adopt this technology, CMF is expected to play a significant role in sustainable and efficient manufacturing. The continued development of new materials and improvements in process automation will further enhance CMF's capabilities and applications in various sectors.

Cold Metal Fusion is a revolutionary technology in additive manufacturing. Its ability to produce high-quality, cost-effective metal parts makes it an attractive option for various industries. By leveraging existing SLS equipment, CMF offers a practical and economical solution for serial production, setting the stage for the future of manufacturing.
